Floating Shotgun Cases: Engineering Buoyancy and Waterproofing for Marsh and Coastal Waterfowl Hunts

Introduction: Water Is Part of the Hunt

Ask any waterfowl hunter who works a marsh or a coastal bay: the gun is going in the water. Not maybe. It is a question of when - the boat rocking at the decoy spread, the bank giving way under waders, the retrieve that goes wrong in three feet of murky tidal water. On a coastal hunt, water is not the exception; it is the operating environment.

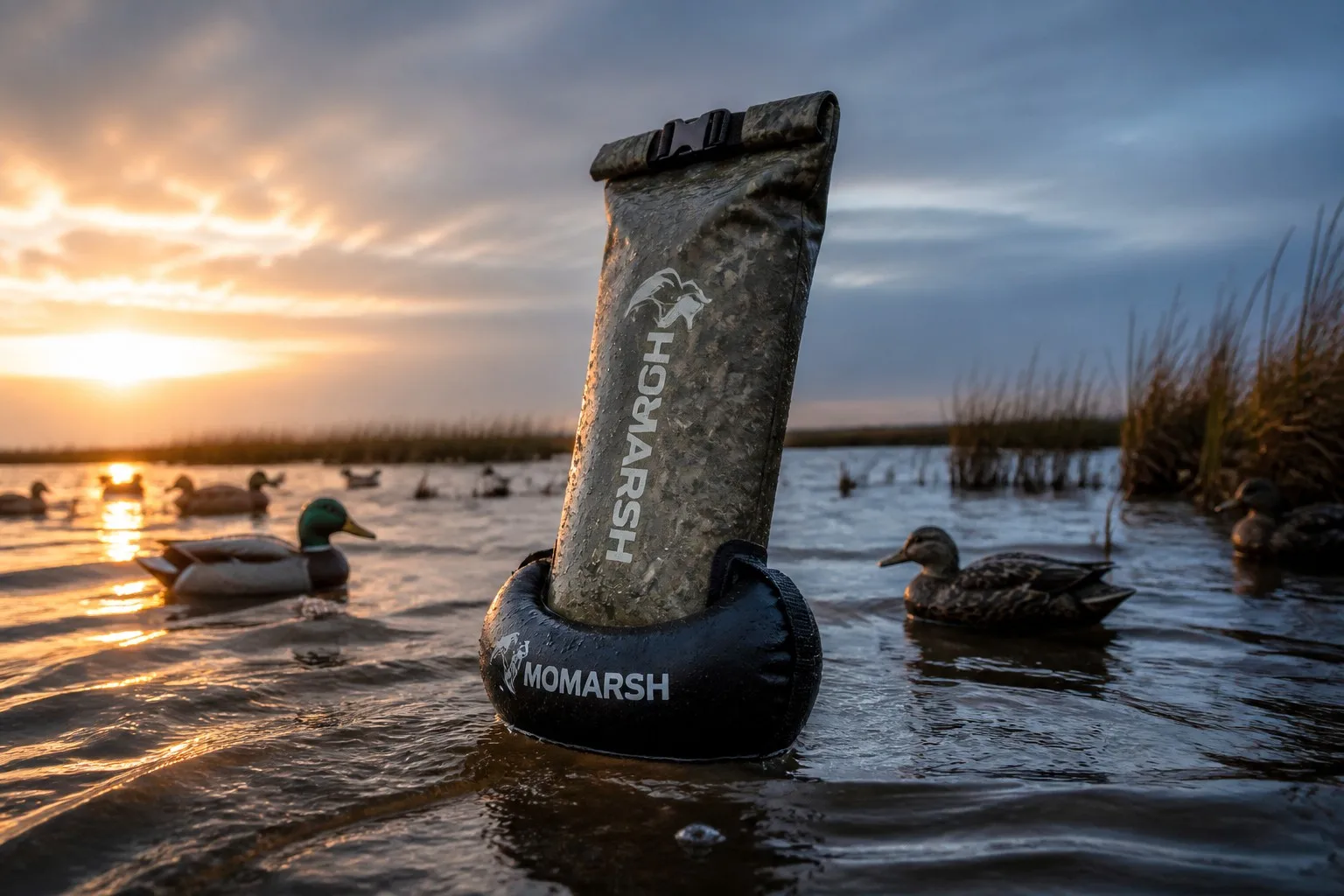

A floating shotgun case exists for exactly one reason: when a gun goes overboard, it must come back up, stay dry inside, and come out ready to shoot. That is a short sentence and a hard engineering problem. It demands that a case carry a shotgun plus its own weight against buoyancy, orient itself muzzle-up as it floats so water never runs into the receiver, seal against complete submersion, survive being bashed around a boat, and laugh at salt spray. Each of those requirements is a separate engineering discipline, and each has a measurable spec. This article walks through all of them, because if you are a wholesaler or distributor sourcing floating shotgun cases, the difference between a good product and a marketing claim lives entirely in those numbers.

Technical Part 1: The Physics of Buoyancy

Archimedes' principle is the whole game: a body immersed in fluid experiences an upward force equal to the weight of the fluid it displaces. A floating case needs to displace enough water that this upward force exceeds the combined weight of gun, case, and whatever else is inside.

Do the math for a typical setup. A 12-gauge pump or semi-auto runs 3.0–3.5 kg. A padded case with shoulder strap and hardware adds 1.5–2.0 kg. Call the loaded package 5 kg. Fresh water is 1000 kg/m³; seawater is denser, around 1025 kg/m³, which actually works in your favor. To float a 5 kg load you need to displace at least 5 liters of water - 0.005 m³.

That is the minimum. Nobody sane designs to the minimum. A loaded case that bobs at the waterline with zero margin is a case that sinks the first time a wave slaps it or a hunter grabs it and pushes down. Industry practice for waterfowl gun cases is a buoyancy reserve of 2–3× the loaded weight. That means the foam structure must displace 10–15 liters.

Closed-cell EVA foam is the workhorse material, with densities typically 40–60 kg/m³. The arithmetic is straightforward: each liter of EVA displaces 1 kg of water but weighs only ~0.05 kg, so it nets roughly 0.95 kg of usable buoyancy per liter. For a 5 kg package at a 2.5× safety factor you need about 13 liters of net buoyancy - roughly 13,000 cm³ of foam. To picture it: a case shell 95 cm long, 30 cm wide, and 8 cm thick in EVA walls gives you a bit over 22 liters of gross foam volume, which is why a genuinely buoyant case looks chunky compared to a soft-sided range bag. If a "floating" case looks slim, someone skipped the foam math.

Two design consequences follow. First, closed-cell construction is non-negotiable - open-cell foam (the kind in ordinary seat cushions) absorbs water and sinks under load. Second, buoyancy has to be distributed deliberately, which brings us to the part most floating-case marketing never mentions.

Technical Part 2: Muzzle-Up Float Orientation

It is not enough for the case to float. It has to float the right way up, and the right way up for a shotgun case is muzzle-up, muzzle out of the water.

Why muzzle-up matters: if the muzzle end sits lower than the receiver, water climbs the bore and fills the action - and an action full of marsh water means rust, stuck shells, and a gun that will not cycle even after the case is opened. Muzzle-up keeps the barrel as the highest point, drains any incidental moisture away from the trigger group, and keeps mud out of the muzzle. A barrel that stays dry on the outside and inside is a barrel that shoots after the retrieve.

Getting there is a physics problem of its own: it is a floating-body stability problem. A floating body is stable when its center of buoyancy (CB) sits above its center of gravity (CG). If the CG is above the CB, the body flips over - think of a loaded boat with cargo stacked high. The restoring torque that rights the case is:

where ρVg is the buoyant force, d is the vertical separation between CB and CG (the metacentric height), and θ is the tilt angle. Bigger d, faster righting. If d approaches zero, the case floats in any random orientation - the failure mode of cheap floating cases that bob around sideways.

So the design disciplines go like this. A shotgun is not uniform mass: the receiver and action concentrate weight near the middle-lower third of the gun, and the stock carries more mass than the barrel. The case's foam layout must put more flotation at the muzzle end (thicker top collar) and less at the butt end, while the gun's own weight does the ballast work. The result: the heavy end hangs down, the buoyant muzzle end rides up, and the CG ends up well below the CB. Many quality cases also drop a small fixed ballast or dense foam plug near the butt to increase d - the same trick sailboat keels use. A correctly built case, dropped into water fully loaded, rights itself in roughly a second, with the muzzle-carrying strap handle above the surface. That orientation is also why you see the carry handle on top of a proper floating case rather than on its side.

Technical Part 3: Waterproofing System

Buoyancy keeps the case up; the waterproofing keeps the contents dry when it goes under. This is where the spec sheets split honest products from the rest.

Roll-top closure versus waterproof zipper

A roll-top seals by folding the opening over itself three times and clipping it shut - no moving parts, no teeth, nothing to wear out, and pressure actually tightens the seal the deeper the case sinks. It is the right answer for a submersion-first product. Waterproof zippers (the heavy YKK Aquaseal type used in dry bags) are more convenient to open and close, but they cost several times more, need periodic lubrication, and their long seam presents a pressure gradient across the whole length - a zip that is 99% sealed still leaks at depth, and every zipper is a wear item. For a case whose entire job is to survive a dunking, the roll-top is the honest engineering choice. Zipper versions exist, but they belong in the "dry bag with a gun pocket" category, not the "gun overboard in the bay" category.

Seams: RF welding, not stitching

A stitched seam is a row of needle holes. Needle holes wick water. That is not a manufacturing opinion; it is physics - a 1-meter submersion exerts about 10 kPa of pressure trying to push water through every hole in the fabric. High-frequency (RF) welding - also called dielectric welding - uses radio-frequency energy to fuse TPU or PVC layers into a single continuous bond with no perforations. A properly welded seam's strength approaches the parent material, and it stays watertight for the life of the case. Every seam on a submersion-grade case should be RF-welded; if a product listing shows a floating case with stitched main seams, treat it as a "splash resistant" product wearing a "floating" label.

What IPX7/IPX8 actually mean

IPX7 means the product survives 1 meter of submersion for 30 minutes. IPX8 means continuous submersion beyond 1 meter, with the depth and time defined by the manufacturer - it is not a magic "totally waterproof forever" badge. For a floating gun case, IPX7 is the meaningful floor, because a case that floats muzzle-up is rarely underwater for long. IPX8 ratings matter for cases that will be fully submerged during retrieval. What you want from a factory is not the badge but the test record: the case loaded with a weighted dummy gun, submerged at depth, held for the rated time, opened, and weighed before and after to measure water ingress in grams. Zero grams is the only acceptable number.

Impact Protection: The Foam Does Double Duty

The same closed-cell EVA that provides buoyancy is the crash padding. This dual role is the design elegance of the category - one material, two jobs - but only if the foam is right.

Closed-cell EVA absorbs impact by compressing its trapped air cells. The energy of a drop or a boat knock goes into deforming the cell structure rather than the gun inside. For shotgun cases, densities around 45–60 kg/m³ are the sweet spot: firm enough to hold shape and resist puncture, soft enough to manage a dropped gun. A 3.5 kg shotgun dropped from waist height develops a significant impact load; a 20–25 mm foam wall over the receiver area turns that into a non-event.

The property to check is compression set - how much of its thickness the foam permanently loses after repeated crushing. Cheap foam, or foam with a high open-cell fraction, packs down over a season and slowly stops being either buoyant or protective. Quality closed-cell EVA with a closed-cell content above ~95% returns to near its original thickness after compression. On a spec sheet you are looking for a compression set under 10% (ASTM D3574) after repeated cycles. In the field, the test is a two-season product: a good case still floats level and still takes a knock at the end of season two. A case that has started riding lower in the water is a case whose foam is dying - that is the difference between 60 kg/m³ virgin EVA and recycled regrind.

Saltwater Resistance: The Coastal Corrosion Problem

Coastal hunts are a different chemical environment than inland marshes. Salt spray, tidal immersion, and warm humid air combine into what is effectively an accelerated corrosion chamber. Any hunter who has watched a zinc buckle turn to white powder in one coastal season understands this viscerally.

The hardware is where saltwater kills cases. Plated zinc and ordinary brass are the first casualties - plating flakes, brass dezincifies. The grading for coastal product is: 316 stainless steel as the entry point for buckles, D-rings, and strap adjusters, and titanium as the premium option where weight and corrosion resistance both matter. Salt spray testing per ASTM B117 - 72 hours or more in a 5% NaCl fog at 35°C - is the industry-standard way to verify hardware before you put a "coastal" claim on a box. A factory that cannot show you salt-spray results is a factory guessing.

Fabric matters too. The coating, not the weave, is what carries the load in salt air. TPU-coated nylon is the current benchmark: the TPU film is inert to salt, and the weldability of TPU is exactly what makes RF-sealed seams possible. PVC-laminated constructions are cheaper and still common, but they get stiff and brittle with UV exposure and plasticizer loss in coastal sun. For a coastal SKU, look for marine-grade coating with UV stabilizers added to the film itself, not just the print layer.

Factory Profile: GAF Outdoor, Guangzhou - Since 2011

GAF Outdoor has manufactured floating and waterproof gun cases in Guangzhou since 2011, and the company's capability stack maps directly onto everything above.

Material compounding and lamination

GAF runs in-house EVA compounding and multi-layer thermal lamination, which matters more than most buyers realize. Foam density, closed-cell ratio, and skin thickness are set at the compounding stage, and thermal lamination bonds foam to coated fabric without solvent adhesives - adhesive layers are a classic failure point when a case flexes in cold weather or hot car trunks. Controlling that in-house is the difference between a spec you can sign and a spec you hope for.

RF welding capacity

The factory operates dedicated RF welding lines for TPU and PVC seams, which is what allows full-perimeter welded construction on the waterproof SKUs. Weld width, dielectric pressure, and cycle time are machine-tuned per material stack, and QC includes peel-force sampling on every batch - the welds are destructively tested on a schedule, not eyeballed.

Salt spray and buoyancy testing in-house

GAF maintains salt-spray chambers (ASTM B117) for hardware verification and runs loaded float tests - fully weighted cases dropped into a tank, timed for self-righting, submerged to rated depth, and weighed afterward for water ingress. What that means for a distributor is simple: when a GAF case ships with a buoyancy and waterproofing claim, the numbers come from tests the factory actually ran, on the actual production construction.

The long view matters for B2B buyers too. A case that fails on the water fails in public - it gets filmed, it gets posted, and it kills the brand of whoever put their label on it. A decade-plus of manufacturing experience in this specific category is a genuine risk-management asset for an importer.

B2B Strategy: Tiering the Market

The waterfowl market splits cleanly into two customers with different price tolerances and different spec needs, and the smart play is to not sell them the same case.

Tier 1 - Coastal premium line

Buyer: coastal duck and goose hunters, saltwater marsh guides, outfitters running boat-based hunts. They need IPX8-capable construction, titanium or 316-grade hardware, UV-stabilized marine fabric, and the full 2.5–3× buoyancy reserve. They will pay for it, and they will come back for a replacement when they wear one out. This is your margin line.

Tier 2 - Inland marsh line

Buyer: inland puddle-duck and field hunters whose worst case is a soggy ditch or a tipped canoe, not a tidal rip. IPX7, welded seams but simpler hardware, standard EVA densities - still fully floating, still self-righting, at a price point that competes with premium dry bags. This is your volume line.

The trust play: measured data

Wholesale buyers have been burned by "floating" cases that sank. The winning sales tool is not adjectives - it is the float test video: a fully loaded case dropped into a tank, righting itself muzzle-up in under two seconds, submerged to depth, opened bone-dry on camera, with the stopwatch and scale in frame. Send your buyers a video of the actual production unit doing that, plus the salt-spray report, plus the compression-set data sheet, and you are no longer selling a promise; you are selling a test record. That is the difference between a 3% reply rate and a real conversation.

Position it that way on your product pages too: dimensions, foam density, displacement volume, safety factor, IP rating, hardware grade, test method. The hunters who buy from you at retail have read enough forum threads about sinking cases to recognize real numbers when they see them. Give the engineers what they want and the buyers what they can verify, and the product sells itself.

Conclusion

A floating shotgun case is a small piece of marine engineering wearing a hunting bag's clothes. The physics are unforgiving and measurable: enough closed-cell foam to displace 2–3× the loaded weight, a center of buoyancy above the center of gravity so the case rights itself muzzle-up, RF-welded seams because stitches leak, hardware that survives ASTM B117 salt fog, and foam with a compression set low enough to still float in year three. GAF Outdoor has been building exactly this since 2011 in Guangzhou, with the compounding, welding, and testing capacity to back every claim in writing. For wholesalers serving the waterfowl market - coastal or inland - the product that wins is the one that proves itself in a tank of water before it ever sees the marsh.
